Estonia

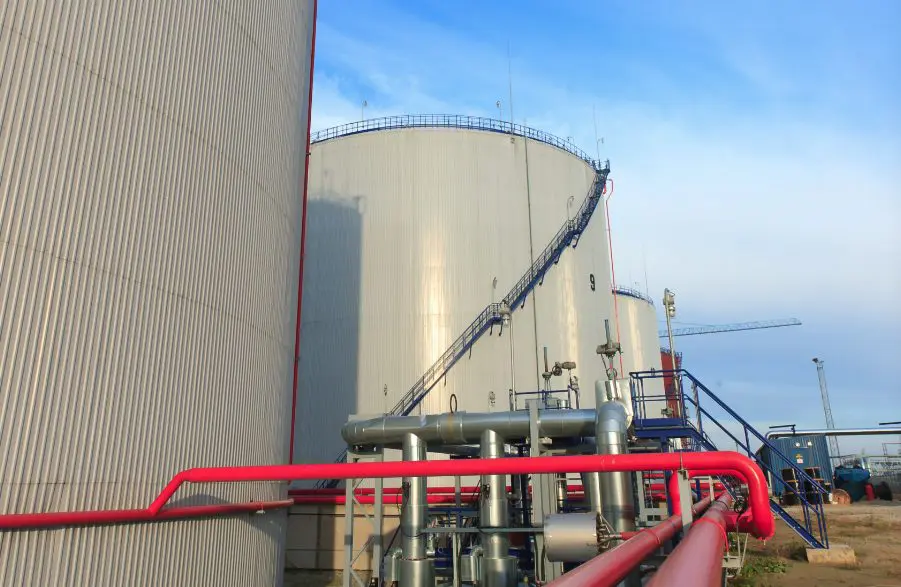

The terminal has a tank farm of 358 000 m³. Modern technology allows for various types of oil products to be stored and handled in the terminal at the same time while guaranteeing complete separation.

Total capacity: 317,900 m³

Handling and Loading Facilities

Railway tank wagon handling:

• One double-sided facility for handling up to 68 railway tank wagons simultaneously, top and bottom discharge.
• Two loading arms with a vapor recovery system for loading cargo on rail wagons.

Ship loading speed: 5 segregated pipelines, max 2,500 m³/h

Unloading speed: 5 block trains daily

• 1 x 3,000 m³
• 3 x 5,000 m³
• 1 x 7,400 m³
• 1 x 10,000 m³
• 1 x 11,000 m³
• 1 x 13,500 m³
• 3 x 25,000 m³
• 6 x 30,000 m³

All tanks with internal floating roofs.

Total capacity: 28,000 m³Number of tanks:

• 8 x 3,500 m³
• 1 tank with a built-in mixer

All tanks are heated with internal floating roofs and an option for nitrogen blanketing.

Railway tank wagon handling: Simultaneously handling up to 12 + 7 railway tank wagons, top and bottom discharge, product heating if needed.

Ship loading speed: 5 segregated pipelines, 350 m³/h

LPG Tank Farm

• Total capacity: 12,000 m³
• Number of tanks: 6 x 2,000 m³ (Spherical tanks)
• Railway tank wagon handling: 18 railway tank wagons handled simultaneously.
• Ship loading speed: 1 pipeline, 300 m³/h

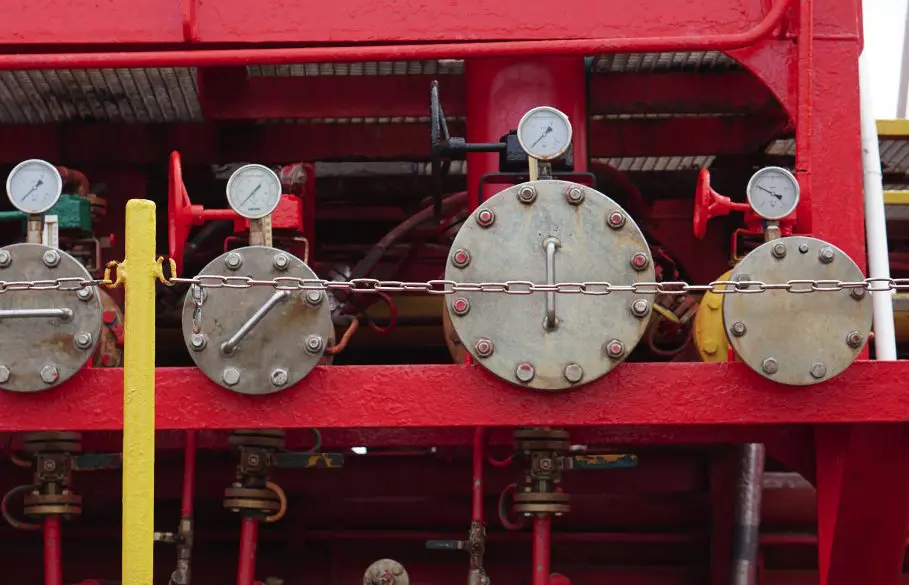

We offer a wide range of services from holding and mixing to toll administration and high-tech lab testing. This complex of facilities is also the most modern, fully automated fuel production center in the world.

• Freight forwarding
• Warehousing and customs clearance
• Oil product mixing
• Pumping of goods from one tank to another
• Alkylate fractionation
• Production of aviation gasoline
• Services of an independent laboratory, Saybolt
• Real-time tracking of goods via Internet
• Loading and unloading of tank trucks, tankers, and railway tank wagons

Aviation gasoline

The most modern and fully automated facility in Paldiski Terminal was founded to increase Avgas 100LL availability and to produce and store the highest quality Avgas 100LL for global distribution.

The production facilities are ISO ang JIG certified and comply with the current requirements of the aviation industry.

The port

Paldiski South Harbour is operated by the Port of Tallinn. The port’s main goods are oil products, metal, wood, peat, and passenger cars. In 2002, the existing jetties were renovated, the aquatorium was dredged and a ro-ro terminal was built. In 2021, the approach canal and turning circle were dredged to 15.5 meters, allowing tankers of up to 115,000 DWT to be served.

Location: 40 km south-west of Tallinn

Operator: Paldiski South Harbour

Depth of approach canal: 15,5 m

Sea level: No tides. Sea level depends on wind direction and force, ±40 cm on average

Type of bottom: Sand/mud

Jetty No. 1

Minimum water depth alongside berth: 12 m

Maximum vessel’s draft permitted alongside: 11,3 m

Vessel length: 180 m

Vessel width: 35 m

Number and size of shore arms/hoses:

• 4 x 8-inch and 6 x 6-inch hoses
• 2 x 300 mm and 8 x 200 mm pipelines from terminal to jetty
• 2 x 100 mm pipelines (with 2 x 4-inch hoses) for vapor recovery

Expected load/discharge rates:

• 750 m3/h per 8-inch line (from the petrochemicals oil depot)
• 300 m3/h per 6-inch line (from the LPG oil depot)Jetty No. 7

Minimum water depth alongside berth: 15,5 m

Maximum vessel’s draft permitted alongside: 14,1 m

Vessel length: 230 m. With a special permit from the port, ship length may be up to a maximum of 250 m

Vessel width: 45 m

Number and size of shore arms/hoses:

• 2 x 16-inch shore arms
• 4 x 8-inch hoses
• 500 mm, 2 x 300 mm and 2 x 200 mm pipelines from terminal to jetty
• 300 mm pipeline (with 2 x 6-inch hoses) for vapor recovery

Expected load/discharge rates:

• 2500 m3/h per 16-inch shore arm
• 750 m3/h-per 8-inch line (only from light oil products oil depot)

All our terminals are operated with the highest level of safety procedures and meet the requirements of all applicable safety, environmental, professional, health, legal, and administrative acts.

TERMINAL SAFETY MEASURES

General information about the handling of dangerous chemicals that have the potential to cause a major accident: Further information can be accessed from following location:

LIST OF DANGEROUS CHEMICALS

Puma Energy Baltics AS

Paldiski terminal

Rae 1a, Paldiski 76806

Estonia

+372 679 0999

Paldiski@pumaenergy.com

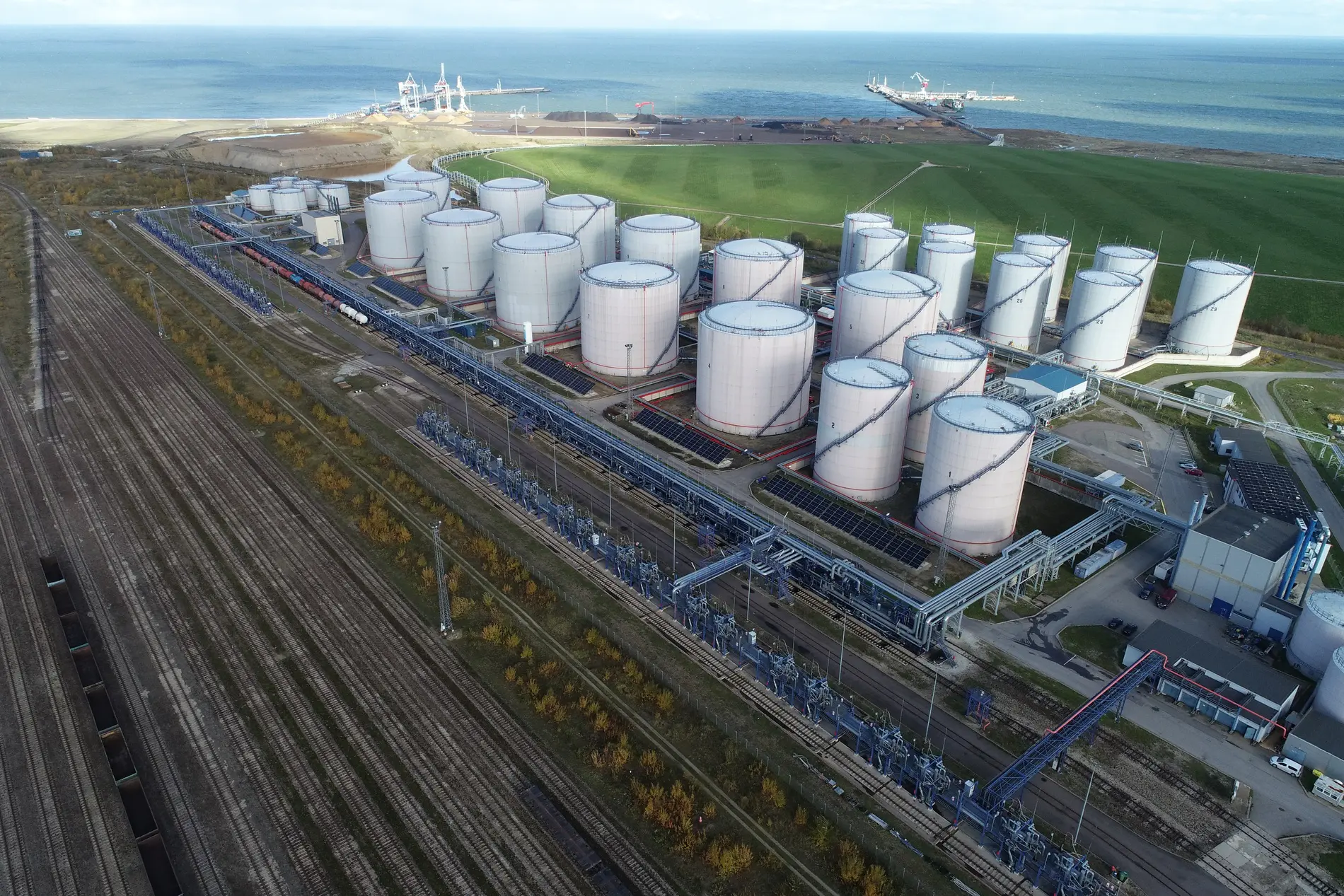

The terminal has a tankfarm of 502 000 m³. Modern technology allows for various types of oil products to be stored and handled in the terminal at the same time, while guaranteeing complete separation. The facilities meet the highest ISO 9001 and ISO 14001 standards.

Our modern infrastructure lets you monitor online in real time the movement of rail wagons starting from the Estonian border, the product quantities in the terminal’s reservoirs and the loading processes in the terminal and on vessels. Sillamäe Port hosts independent accredited laboratories that guarantee product quality and quantity control.

• Freight forwarding
• Warehousing and customs clearance
• Oil product mixing
• Pumping goods between tanks
• Alkylate fractionation
• Independent laboratory services
• Real-time tracking of goods online
• Loading/unloading of tank trucks, tankers, and railway tank wagons

Port Operations

• Terminal operates on Jetties 1, 2, and 4.
• Jetties 1 and 2 handle tankers up to 100,000 DWT and are exclusively operated by Nord Terminals Sillamäe.
• Jetty 4 accommodates tankers up to 30,000 DWT.

Location and Specifications

• Location: Narva Bay, 25 km from the EU-Russia border.
• Operator: AS Sillamäe Sadam.
• Depth of approach canal: 16.5 m.
• Sea level: No tides; depends on wind direction and force.
• Bottom type: Sand, gravel, mud.

Jetty 1 and 2 Details

• Depth: 15.8 m.
• Length: 319 m.
• Vessel capacity: Length 250 m, Width 42 m.

Pipe connections:

• 2 × 600 mm (electric heating, thermal insulation).
• 2 × 200 mm (electric heating, thermal insulation).

Load/Discharge Rates:

• 2 × 16-inch loader arms (3,000 m³/h each).
• 2 × 8-inch hoses (300 m³/h each).

Jetty 4 Details

• Depth: 12 m.
• Length: 200 m.
• Vessel capacity: Length 170 m.

Pipe connections:

• 2 × 200 mm (electric heating, thermal insulation).

Load/Discharge Rates:

• 2 × 8-inch hoses (300 m³/h each).

Commitment to Safety

All our terminals are operated with the highest level of safety procedures and comply with all applicable safety, environmental, and occupational health regulations.

TERMINAL SAFETY MEASURES

Dangerous Chemicals Management

General information about dangerous chemicals with potential to cause major accidents can be accessed here: [List of Dangerous Chemicals].

Puma Energy Baltics AS

Sillamäe terminal

Kesk 2b, Sillamäe 40231

+372 392 9331

Sillamae@pumaenergy.com

The terminal has a tankfarm of 42 600 m3. Modern technology allows for light and dark oil products to be stored and handled in the terminal at the same time, while guaranteeing complete separation.

Tallinn Terminal Tankfarm Overview

Total Capacity

42,600 m³

Tank Details

• 2 tanks of 7,500 m³
• 3 tanks of 3,100 m³
• 2 tanks of 4,500 m³
• 1 tank of 2,300 m³
• 1 tank of 2,000 m³
• 4 tanks of 1,000 m³
• 1 tank of 700 m³
• 3 tanks of 100 m³

We offer a wide range of services from truck and railway unloading to pumping between shore tanks and custom formalities.

• Truck loading and unloading
• Railway unloading
• Custom formalities
• Pumping between shore tanks

Terminal Connections and Facilities

The terminal is linked to the Estonian Railway via the Ülemiste station.

• Railway tank wagon handling: Simultaneous unloading of 9 RTCs of light products.
• Truck unloading facilities: 4 places for dark products and 5 places for light products.
• Truck loading facilities: 2 places for light products and 3 places for dark products.

Jetty nr 35

• Maximum vessel’s draft permitted alongside: 8.8 m
• Pier length: 400 mRail

way Information

• Estonian Railways station: Ülemiste
• Station code: 082000

Terminal Safety Measures

All our terminals operate under the highest safety standards, strictly adhering to all applicable safety, environmental, and occupational health legal and administrative requirements.

Terminal Safety Measures

Puma Energy Baltics AS

Tallinn terminal

Nõlva 8, Tallinn 10416

+372 6154000

Estonia@pumaenergy.com
